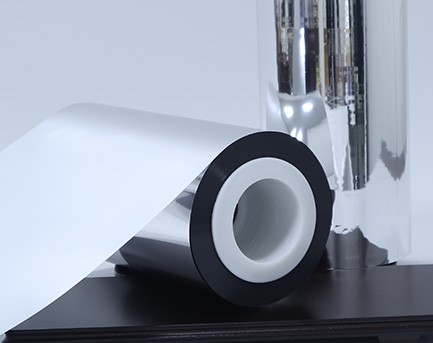

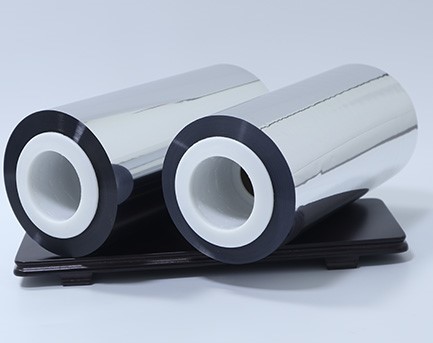

VMPET-JQ series is a chemical-enhanced metallized PET film. The coating treatment is intended to improve bonding between the PET film and the aluminum layer, supporting laminates that need higher metallized-layer adhesion.

The series includes VMPET-JQ01, VMPET-JQ17, VMPET-JQ20 and VMPET-JQ36. The brochure technical table is based on 12 μm film and distinguishes the grades by aluminum-layer thickness, adhesion and heat-processing capability.

VMPET-JQ01 is listed for both boiling and sterilization up to 121°C for 30 minutes. VMPET-JQ17 is listed for boiling only. VMPET-JQ20 and VMPET-JQ36 are not listed for boiling or sterilization. Finished-package performance must be validated in the customer's laminate.

• 12 μm reference thickness and 1.4 g/cm³ density for all four grades.
• OTR 1.0 cc/m²·day (ASTM D-3985) and WVTR 1.0 g/m²·day (ASTM F-1249) for all four grades.
• Aluminum-layer thickness: 2.2 / 2.2 / 2.1 / 2.1 OD for JQ01 / JQ17 / JQ20 / JQ36.
• Aluminum-layer adhesion: 4.0 / 2.8 / 3.0 / 3.0 N/15mm respectively.
• Tensile strength: 210 MPa in MD and TD; elongation at break: 140% MD and 130% TD.
• JQ01: boiling and sterilization ≤ 121°C for 30 minutes; JQ17: boiling only; JQ20 and JQ36: neither capability is listed.
• The brochure lists conformity with FDA, EU, REACH, RoHS and GB 4806.7 requirements.

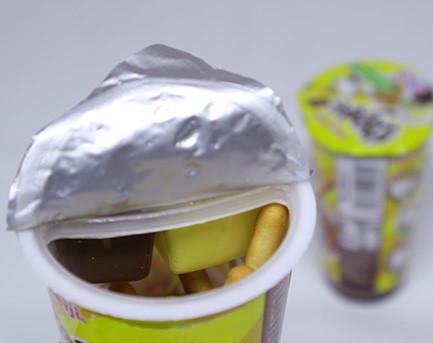

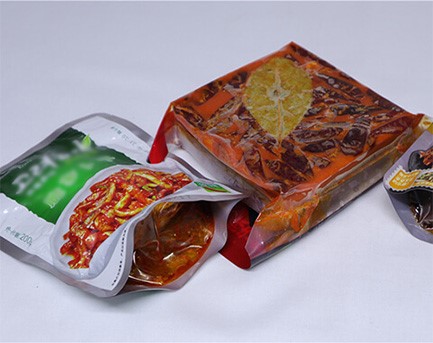

• Packaging for dried fruit, tea, coffee, chocolate, dehydrated food, dried flavorings, fragrances and pharmaceuticals.

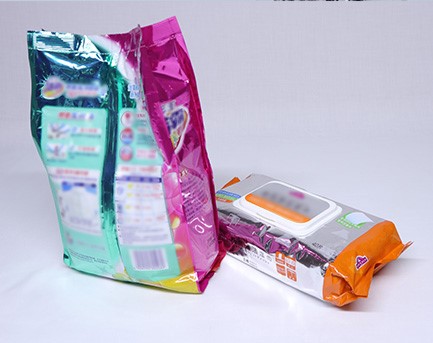

• Applications for electronics, decorative materials, labels, cosmetics and metal-product packaging.
• Packaging structures that require stronger aluminum-layer adhesion than standard VMPET.
• Final grade selection should be based on the required adhesion, boiling or sterilization process, laminate structure and sealing layer.

Important Notes:

The above data, obtained from our internal testing, is provided for reference only to assist customers in sample evaluation or product use.

The final performance of the product depends on specific production processes, and improper use may cause irreversible damage.

As equipment, processing condtions, and end-use requirements vary across manufacturers, our company shall only be responsible for the

performance of the film itself.

FAQ

What is chemical-enhanced metallized PET film mainly used for?

The existing page lists coffee bags, sauce packets, oily and aqueous products, food requiring boiling or retorting, daily chemical products and pharmaceutical packaging.

What are the key characteristics of this film?

The page describes strong aluminum-layer adhesion, oxygen and moisture barrier, and good moisture and thermal resistance.

What should buyers confirm before ordering?

Buyers should confirm the required aluminum-layer adhesion, barrier level, product grade, lamination structure and whether boiling or retorting performance is required.
