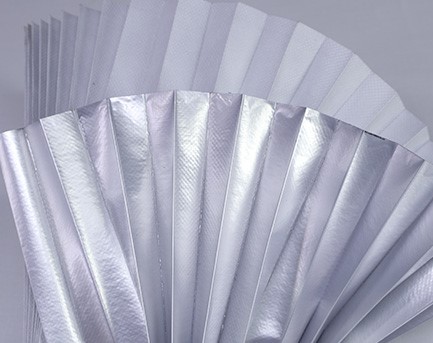

High Adhesion Metallized BOPP film BOPP-GF02
View details >Double sided high adhesion polyester aluminum plated film VMPET-GF02, coated with a thin layer of aluminum on both sides of BOPET film through special technology, is used as a flexible packaging material for special purposes
Double sided high adhesion polyester aluminum plated film VMPET-GF02, coated with a thin layer of aluminum on both sides of BOPET film through special technology, is used as a flexible packaging material for special purposes
1. It is a beautiful, inexpensive and high-performing packaging material. It has excellent reflective properties.
2. The double-sided metal film has excellent light-blocking and UV protection properties.
3. Electromagnetic wave shielding

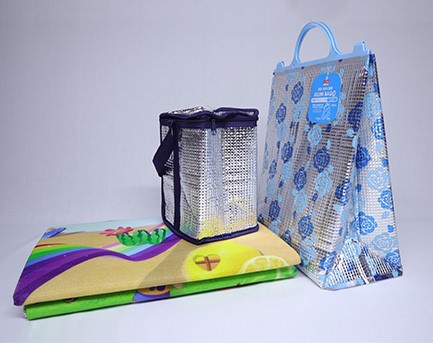

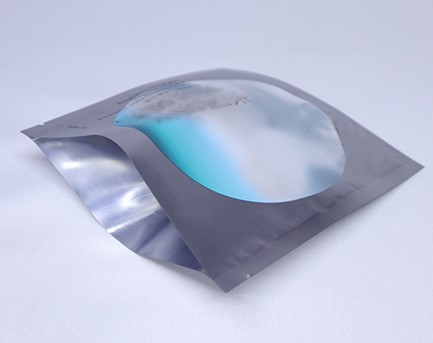

1.Applicable to printing, food packaging, cosmetic packaging, electronic packaging, decorative materials, labels, etc.
2. The glossy metal film can replace aluminum foil (with a lower cost than aluminum foil) and has a beautiful appearance as well as excellent insulation properties. Therefore, it is widely used in the packaging industry.



| 测试项目Items | 测试方法Testing Methods | 单位Units | 标准值Standard | 典型Typical Values | |
| BB/T 0030-2019 | |||||
| 厚度 Thickness | GB/T6672 | um | ─ | 8~100 | |
| 铝层厚度Aluminum Thickness | GB/T15717 | Ω/□ | ≤2.5 | 1.8 | |
| 密度 Density | GB/T 1033 | g/cm³ | ─ | 1.4 | |
| 铝层附着力Aluminum Adhesion | BB/T0030-2019 | % | ≤20 | 1 | |
| 铝层均匀度Aluminum Uniformity | BB/T0030-2019 | % | ±15 | 2 | |
| 湿润张力Surface Tension | Al Side | GB/14216-2008 | mN/m | ≥48 | 52 |
| Non-Al side | ≥44 | 46 | |||
| 拉伸强度Tensile Ttrength | MD | GB/T1040.3 | Mpa | (<70um)≧170 | 190 |
| TD | (≧75um)≧150 | 195 | |||
| 断裂伸长率Elongation at Break | MD | GB/T1040.3 | % | ≥80 | 110 |
| TD | ≥80 | 100 | |||
Important Notes:
The above data, obtained from our internal testing, is provided for reference only to assist customers in sample evaluation or product use.
The final performance of the product depends on specific production processes, and improper use may cause irreversible damage.
As equipment, processing condtions, and end-use requirements vary across manufacturers, our company shall only be responsible for the
performance of the film itself.
