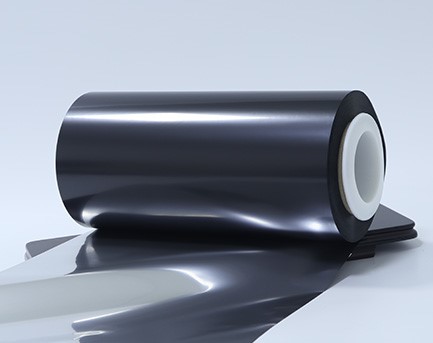

Singled Side Matte PET Metallized Film
View details >
Material PET Thickness 9um,12um,25um,50um,100um Length customized Width customized Certificate FDA、EU、REACH、RoHS Packing Wooden pallets MOQ 1T
Black polyester aluminized film is a black PET original film with zero light transmittance through vacuum aluminized film, which has the function of strong shading.
1. It has the functions of shading, signal shielding and so on.
| 参考标准 Standard | 黑色聚酯镀铝膜VMPET(BLACK) | |||
| 测试项目 Items | 测试方法 Testing methods | 单位 Unit | 典型值 Typical Values | |
| 厚度 Thickness | GB/T 6672-2001 | μm | 12 | |
| 拉伸强度 Tensile Strength | MD | GB/T 1040.3 | MPa | ≥140 |
| TD | GB/T 1040.3 | ≥140 | ||
| 断裂伸长率 Elongation at Break | MD | GB/T 1040.3 | % | ≤150 |
| TD | GB/T 1040.3 | ≤150 | ||
| 热收缩率 Heat Shrinkage | MD | 150℃*30min | % | ≤2.5 |
| TD | 150℃*30min | ≤1.5 | ||
| 湿润张力 Surface Tension | Al side | GB/T 14216-2008 | mN/m | ≥48 |
| Non Al side | GB/T 14216-2008 | ≥42 | ||
| 透光率 Light Transmittance | GB/T2410 | % | 0 | |
| 铝层厚度 Al Thickness | GB/T15717-1995 | Ω/□ | ≤2.5 | |
| 铝层均匀度 Al Uniformity | ASTM D-1003 | % | 5 | |
Important Notes:
The above data, obtained from our internal testing, is provided for reference only to assist customers in sample evaluation or product use.
The final performance of the product depends on specific production processes, and improper use may cause irreversible damage.
As equipment, processing condtions, and end-use requirements vary across manufacturers, our company shall only be responsible for the
performance of the film itself.
